SPECIFICATIONS

Please Visit PACIFIC AEROSPACE For Expanded P-750 XSTOL Specifications

FUEL CAPACITY:


Total Capacity: 861 litres (227.4 U.S. gallons, 1512 lbs)
Total Useable: 841 litres (221 U.S. gallons, 1476 lbs)



TANK
TOTAL CAPACITY
UNUSABLE FUEL
USABLE
FRONT LEFT TANK *
284 * litres, 499 lbs
75 * U.S. Gallons
10 litres, 18 lbs
3 U.S. Gallons
274 litres, 481 lbs
72 U.S. Gallons
FRONT RIGHT TANK
293 Litres, 515 lbs
77 U.S. Gallons
10 litres, 18 lbs
3 U.S. Gallons
283 litres, 497 lbs
74 U.S. Gallons
REAR LEFT TANK
142 litres, 249 lbs
37.5 U.S. Gallons
0

142 litres, 249 lbs
37.5 U.S. Gallons
REAR RIGHT TANK
142 litres, 249 lbs
37.5 U.S. Gallons
0

142 litres, 249 lbs
37.5 U.S. Gallons
TOTAL
861 litres, 1512 lbs
227 U.S. Gallons
20 litres, 36 lbs
6 U.S. Gallons
841 litres, 1476 lbs
221 U.S. Gallons
* Includes 26 litres (6.8 U.S. gallons, 45 lbs) of fuel in sump tank




MAXIMUM CERTIFIED WEIGHTS:


MAXIMUM CERTIFIED TAKEOFF WEIGHT: 7500 lbs (3410 kgs)
MAXIMUM CERTIFIED LANDING WEIGHT: 7125 lbs (3231 kgs)



TYPICAL AIRPLANE WEIGHTS:

BASIC EMPTY WEIGHT: 3100 lbs (1405 kgs)
MAXIMUM USEFUL LOAD:
(will vary with basic empty weights)
4400 lbs (1995 kgs)


CABIN AND ENTRY DIMENSIONS:

CABIN WIDTH:
(maximum width)
54" (137.16 cm)
CABIN LENGTH:
(measured from behind pilot's seat to rear cabin bulkhead)
158" (401.32 cm)
CABIN HEIGHT:
(maximum Height)
56" (142.24 cm)
ENTRY WIDTH:
(varies depending on door type)
50"-48" (127 cm - 121.92 cm)
ENTRY HEIGHT:
(measured from behind pilot's seat to rear cabin bulkhead)
47" - 45" (front of door frame) (119.38 cm - 114.3 cm)
41.3" - 39.3" (rear of door frame) (104.90 cm - 99.82 cm)
SILL HEIGHT:
(oleos fully extended)
44" (111.76 cm)
CABIN VOLUME: 220 cubic ft
With Additional Rear Baggage Compartment: 247 cubic ft
Anticipated Cargo Pod Volume: 113 CU FT
Total with Additional Rear Baggage and Pod: 360 CU FT
DISTANCE CARGO DOOR TO HORIZONTAL STABILISER: 121.75" (309.24cm)

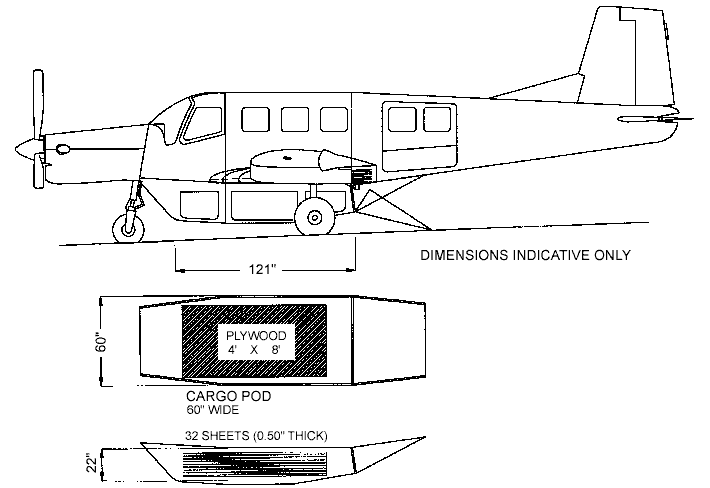

CARGO POD STRUCTURAL LIMITATIONS:
Maximum Combined Load is: 1000 lb (454 kg)
Maximum Distributed Load is: 50 lb/ft2 (244 kg/m2)
Maximum Load FWD & MID bays: 500 lb (227 kg)
Maximum Load AFT bay: 100 lb (45 kg)
THE CARGO POD DOOR OPENINGS ARE AS FOLLOWS:
Front door: 33.5w x 12.25h (With corner cut off at front).
Middle door: 31.5w x 12.25h
Rear side door: 31.5w x 12h (front) / 5h (rear)
Back door: 31.5w x 47h.

OUTSIDE DIMENSIONS:

OVERALL LENGTH: 38' 10"
WING SPAN: 42' 0"
HEIGHT TO TOP OF RUDDER: 13' 3"



SPECIFIC LOADINGS:

WING LOADING: 24.59 lb/ft2
POWER LOADING: 10 lbs/shp

PERFORMANCE:

MAXIMUM OPERATING ALTITUDE (6095 m) 20,000 ft.
STALL SPEEDS, IAS AT 7500 LBS
Flaps up, power idle 69 kts.
Flaps landing, power idle 58 kts.
TAKEOFF
Sea level, 7500 lbs (3405 kgs) MTOW, carrying useful load of 4400 lbs (1997 kgs)

Ground roll 886 feet
Take off distance to 50 ft. obstacle 1482 ft.
CLIMB PEFORMANCE
Sea level, 7500 lbs (3405 kgs) MTOW, carrying useful load of 4400 lbs (1997 kgs) using maximum continuous power

Climb to 12,000 ft. (3657 m) from brakes release 12 minutes
LANDING PERFORMANCE
Maximum landing weight, carrying useful load of 4025 lbs (1827 kgs) 3 degree glidepath, over 50 ft (15 m) obstacle, no reverse (FAR 23.75 (a))
2016 ft (614 m)
CRUISE
10,000 ft, ISA + 20 169 kts
10,000 ft, ISA 169 kts
RANGE
7500 lbs (3405 kgs) MTOW, carrying useful load of 4400 lbs (1997 kgs), includes fuel for start, taxi, takeoff, climb, descent and 45 minutes reserve remaining after landing
582 nautical miles
ENDURANCE
7500 lbs (3405 kgs) MTOW, carrying useful load of 4400 lbs (1997 kgs), includes fuel for start, taxi, takeoff, climb, descent and 45 minutes reserve remaining after landing
5 hours
BEST RATE OF CLIMB 95 KIAS
BEST ANGLE OF CLIMB 85 KIAS
MAXIMUM DEMONSTRATED CROSSWIND 14 kts

DESIGN:

The P-750 XSTOL is certified to FAR Part 23 in the Normal Category.
MAXIMUM OPERATING SPEED 170 KIAS
MANEUVRING SPEED 131 KIAS
FLAP SPEEDS
0-20 degrees 120 KIAS
21-40 degrees 110 KIAS
FLIGHT LOAD FACTOR LIMITS

g g
FLAPS UP: +3.47 -1.39
FLAPS TAKE OFF: +3.0 -0
FLAPS LANDING: +3.0 -0
